| Our Products |
|
| Gold Melting Furnace |
|
| ½ Kg |
Technical Specification |

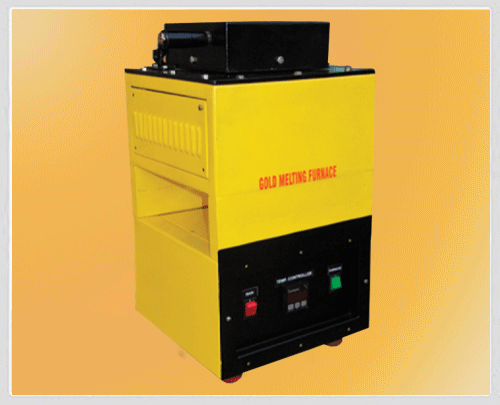

Gold Melting Furnace ½ Kg
|
|
| Furnace Type |
Top Loading |
| Max. Temperature |
1200°C |
| Loading Capacity |
500 Gram |
| Crucible Type |
Graphite |
| Heating Elements |
Silicon Carbide |
| Rated Power. Max. |
1 Kw |
| Input Voltage |
220 Volt AC |
| Heat-up Time |
30min, No Load |
| Cooling |
Conventional Air |
|
| 1 Kg |
Technical Specification |

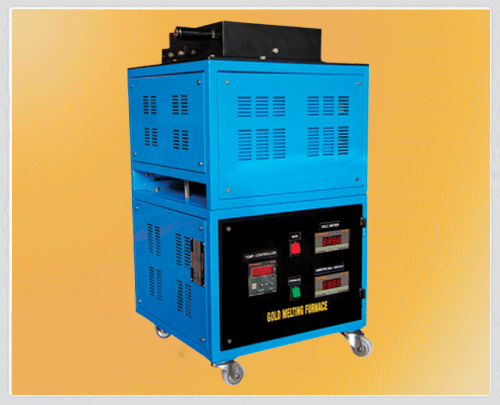

Gold Melting Furnace 1 Kg
|
|
| |
STD |
SPL |
| Furnace Type |
Top Loading |
Top Loading |
| Max. Temperature |
1200°C |
1200°C |
| Loading Capacity |
1Kg |
1Kg |
| Crucible Type |
Graphite |
Graphite |
| Heating Elements |
Silicon Carbide |
Silicon Carbide |
| Rated Power. Max. |
2.2 Kw |
3.3 Kw |
| Input Voltage |
220 Volt AC |
415 Volt AC |
| Heat-up Time |
15min, No Load |
10 min, No Load |
| Cooling |
Conventional Air |
Conventional Air |
|
| 2 Kg |
Technical Specification |

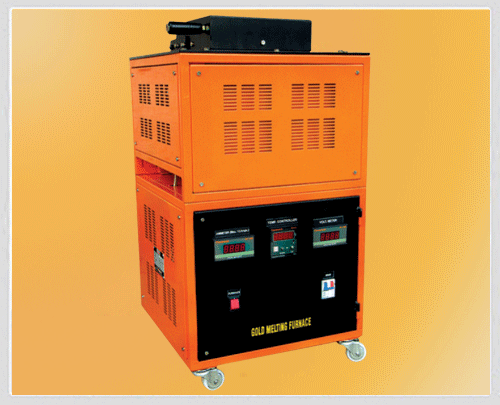

Gold Melting Furnace 2 Kg
|
|
| |
STD |
SPL |
| Furnace Type |
Top Loading |
Top Loading |
| Max. Temperature |
1200°C |
1200°C |
| Loading Capacity |
2Kg |
2Kg |
| Crucible Type |
Graphite |
Graphite |
| Heating Elements |
Silicon Carbide |
Silicon Carbide |
| Rated Power. Max. |
2.7 Kw |
4 Kw |
| Input Voltage |
220 Volt AC |
415 Volt AC |
| Heat-up Time |
20min, No Load |
10 min, No Load |
| Cooling |
Conventional Air |
Conventional Air |
|
| 3 Kg |
Technical Specification |

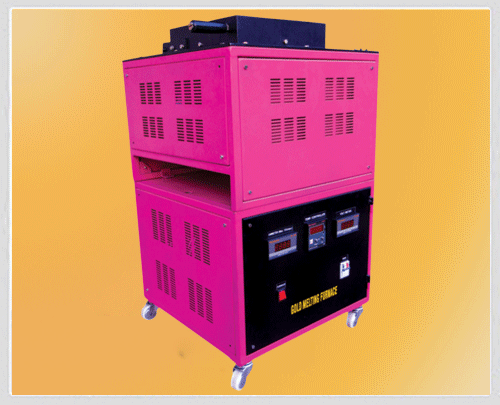

Gold Melting Furnace 3 Kg
|
|
| |
STD |
SPL |
| Furnace Type |
Top Loading |
Top Loading |
| Max. Temperature |
1200°C |
1200°C |
| Loading Capacity |
3Kg |
3Kg |
| Crucible Type |
Graphite |
Graphite |
| Heating Elements |
Silicon Carbide |
Silicon Carbide |
| Rated Power. Max. |
3.5 Kw |
5.25 Kw |
| Input Voltage |
220 Volt AC |
415 Volt AC |
| Heat-up Time |
30min, No Load |
15 min, No Load |
| Cooling |
Conventional Air |
Conventional Air |
|
| 5 Kg |
Technical Specification |

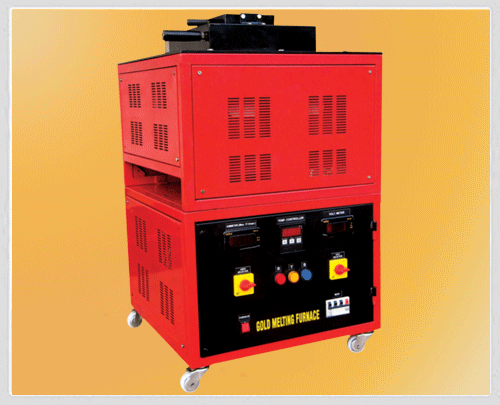

Gold Melting Furnace 5 Kg
|
|
| |
STD |
SPL |
| Furnace Type |
Top Loading |
Top Loading |
| Max. Temperature |
1200°C |
1200°C |
| Loading Capacity |
5Kg |
5Kg |
| Crucible Type |
Graphite |
Graphite |
| Heating Elements |
Silicon Carbide |
Silicon Carbide |
| Rated Power. Max. |
4.5 Kw |
6.5 Kw |
| Input Voltage |
220 Volt AC |
415 Volt AC |
| Heat-up Time |
35min, No Load |
15 min, No Load |
| Cooling |
Conventional Air |
Conventional Air |
|
| |
|
|
|
|
| |
|
