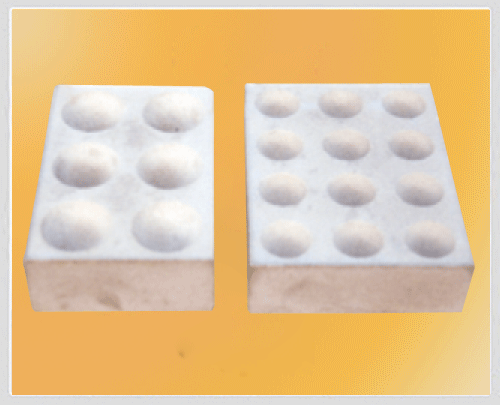

Cupel
|
|
Silicon Carbide Muffle
(Cupellation Furnace)
|
|
Melting & Annealing Furnace
|
|
|

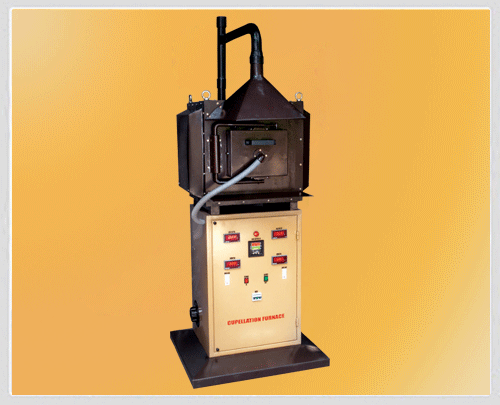

| Cupellation Furnace |
Technical Specification |
Cupellation Furnace
|
|
| Furnace Type |
Front Loading |
| Max. Temperature |
1200°C |
| Muffle Size |
176mm X 100mm X 230mm |
| Heating Elements |
Silicon Carbide |
| Rated Power. Max. |
6 Kw |
| Input Voltage |
415 Volt AC |
| Heat-up Time |
1Hrs |
| Cooling |
Conventional Air |
|

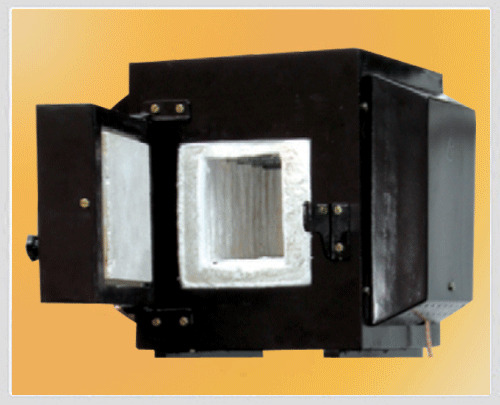

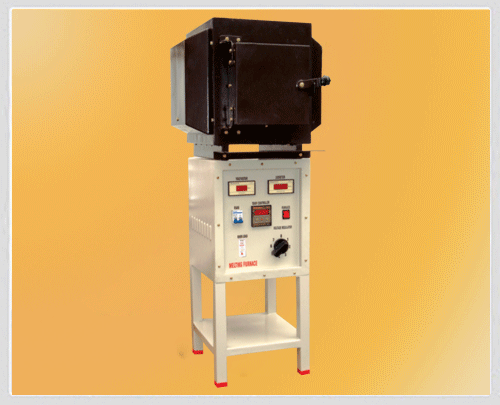

| Melting & Annealing Furnace |
Technical Specification |
Melting & Annealing Furnace
|
|
| |
Melting (Muffle) |
Annealing (Muffle) |
| Furnace Type |
Front Loading |
Front Loading |
| Max. Temperature |
1200°C |
900°C |
| Muffle Size |
125mm X 125mm X 250mm |
125mm X 125mm X 250mm |
| Heating Elements |
Silicon Carbide |
Silicon Carbide |
| Rated Power. Max. |
3 Kw |
2.5 Kw |
| Input Voltage |
220 Volt AC |
220 Volt AC |
| Heat-up Time |
15 min, No Load |
15 min, No Load |
| Cooling |
Conventional Air |
Conventional Air |
|
| |
|
|
|
|
| |
|
